Excavator parts under chassis track roller top roller idler sprocket Track bottom roller

Excavator parts under chassis track roller top roller idler sprocket Track bottom roller
Excavator parts under chassis track roller top roller idler sprocket Track bottom roller
Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller Excavator parts under chassis track roller top roller idler sprocket Track bottom roller

Large Image :  Excavator parts under chassis track roller top roller idler sprocket Track bottom roller

Product Details:
Place of Origin: Guangdong, China
Brand Name: HF
Certification: ISO9001
Model Number: ANY
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: USD 50-450/piece
Packaging Details: Pallet, wooden case, plastic film packaging or custom packaging
Delivery Time: within 3 days after receiving payment
Payment Terms: L/C, T/T
Supply Ability: 6000 Piece/Pieces Month

Excavator parts under chassis track roller top roller idler sprocket Track bottom roller

Description
Condition: New Applicable Industries: Machinery Repair Shops, Energy & Mining, Construction Works , Other
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty: 3 Months Weight: 40 Kg
Color: Yellow/Black Process: Forging/shaping
Material: 35MnB Surface Hardness: HRC52-58
Hardness Depth: 8-12mm Moving Type: Crawler Excavator And Bulldozer
Type: Undercarriage Parts Port: NANSHA,GUANGZHOU,YIWU,SHISHI...

Products Features



Product Information

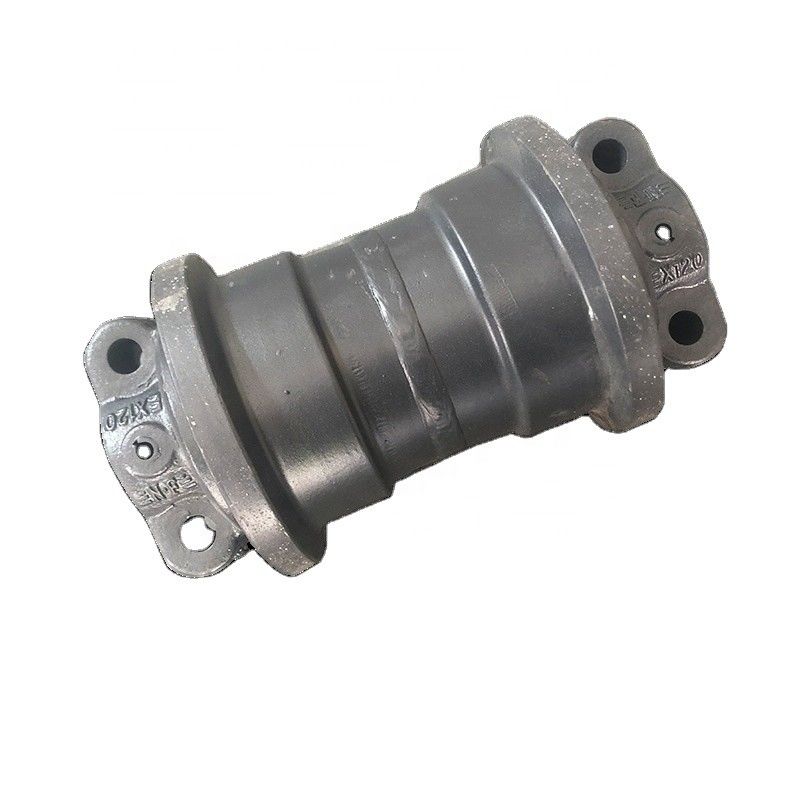

Undercarriage parts/Track roller



Material



50Mn/40MnB



Finish



Smooth



Colors



Black or yellow



Technique



Forging & casting



Surface Hardness



HRC52-58,deepth 8-12mm



Warranty Time



2000 hour (Normal life 4000 hours)



Certification



ISO9001-9002



FOB Price



FOB Guangdong USD 50-450/piece



MOQ



2 piece



Delivery Time



Within 30 days after contract established



Package



Fumigate seaworthy packing



Payment Term

(1) T/T,30% in deposit,balance on the receipt of copy of B/L

(2)L/C,Irrevocable letter of credit at sight



Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 0



Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 1

Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 2

Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 3



Track Roller Functions:


1.Support the track as its most between the sprocket and idler.
2.Guide the track between the sprocket and idler
3.Strength to resist failure before tread wear life is utilized.
4.Treads wear life matched to track links.
5.Treads and flanges rebuild able on forged shells.
6.Thru-hardened flanges to resist bending and improve rebuild ability.



Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 4



Other machinery and models are available



Ton Machine

Description Track roller

Bottom roller

Weight(Kg) Part Number
20T Komatsu PC200 38.4 20Y-30-00012/20Y-30-00014/00016/KM1428
CAT E200B/CAT320 36.4 117-5045/8E-5034/1634143/CR5109/CR6676
Kato HD700/820 39 547-50800110
KOBELCO SK200-6 38.4
HITACHI EX200-5 37.6 9134243/HT50/FT3612
KOBELCO SK200-3 38.5
Sumitomo SH200-5 38.5 KRA1189
CAT CAT322 37 163-4145/6I-9396/CR5726/ VCR5726V/A0122000M00
HYUNDAI R200 42.3 E181.2002
  SE210 40.6 1081-03680
HITACHI

EX200-1/

CAT215B/225B

39 9114617/9066510/7T6394
Komatsu PC200-7/8 37
Daewoo / Doosan DH220 35
Volvo EC210 40.2
CAT CAT325 44 117-5046/6Y-1057/CR5525
  FH200 46 Fiat
30T Komatsu PC300 51.5 207-30-00130
Hitachi

ZX330-1/

EX300-5

53 9168173/9114682/7T6396
Hitachi ZX330-3 56.2 HT627/9247454
CAT CAT330 55.5 117-5047/6Y-2795/CR5897/CR5397
KOBELCO SK330-6/350 55.5 LC64D00005F1
Sumitomo SH300/350 64.5 KSA0835
Volvo EC290/EC300D 51.5
Komatsu PC300-7 51 207-30-00150
Volvo EC360/EC380D 67
Kato HD1250/HD1430 54 587-50800100
HYUNDAI R290/R305 51.5 81E5-2002
Komatsu R290/R305 56
40T Komatsu PC400-6 73.5 208-30-00210
HITACHI EX400-5 79 4386648/9129347
HITACHI EX400-1-5 79
HYUNDAI R455 79 81E7-0015/ 81E7-00631
Sumitomo SH400-3/SH450-3 84 KTA1106
CAT CAT345/349 78 124-7280
KOBELCO SK460/480 96 24100N7039F4
10T Komatsu PC100/120-5 22 203-30-00220
HITACHI EX100 23.2 9132600/9092522
CAT CAT312 25 151-9747/4I-7346
KOBELCO SK100/120 25 24100N4042F2
Sumitomo SH120-3 24.7 KNA0693
Komatsu PC120-3 22.1
Sumitomo SH120 25.5
Hitachi EX100/120 25.6
<10T Komatsu PC60-6 15 201-30-00062/KM1690
Sumitomo SH60 16 KAA0675
SANY SANY75 14.2
SANY SANY65 9.3
Hitachi ZAX70 16.4
>40T cat CAT375/390 169

178-7288/CR6378/109-1215/137-3369/143-0367/

152-4130/185-5065/6Y8124

cat CAT365 140.5
Hitachi

EX650/EX750/

ZAX870/EC700B

143

9151869/HT551/4473720/9127065/9134268/

A1680000M00/AT309605/LV64D00001F1/V4473720V

Hitachi

EX650/EX750/

ZAX870(ITH)

144

9151869/HT551/4473720/9127065/9134268/

A1680000M00/AT309605/LV64D00001F1/V4473720V

Komatsu PC1250 182 21N-30-00121
Komatsu

PC650-3/5

/PC800-6

140 209-30-00191 /KM2143/VKM2143V

Komatsu/

Hitachi

EX550/PC650-8 112 4348373/9109493/ 21M-30-00100
  Komatsu D60 SF 53

141-30-00578/141-30-00570/141-30-00571/

141-30-00576/207-30-00022

Komatsu D60 DF 60

141-30-00588 141-30-00580 141-30-00581

141-30-00586 207-30-00040 00585

Komatsu D30/31SF 25 113-30-00130 111-30-00274 111-30-00272
Komatsu D30/31 DF 29 111-30-00281
Komatsu D50 47 131-30-00322
Komatsu D50 55 131-30-00332
CAT D6D SF 52 CR6088
CAT D6D DF 58.5 CR6089
Komatsu D155 DF 118.7

175-30-00496 175-30-00770 175-30-00490

175-30-00491 175-30-00499 175-30-00554

Komatsu D155 Sf 106

175-30-00486 175-30-00760 175-30-00480

175-30-00481 175-30-00489 175-30-00544

Komatsu D155AX DF 110 17A-30-00080/KM2266
Komatsu D155AX SF 101.5 17A-30-00070/KM2265
FIAT FL6 29 4991645
Komatsu D275AX-5 DF 129.5

KM3594/17M-30-00320/17M-30-01320/

17M-30-01321/A42027900M00

Komatsu D275AX-5 SF 120.5

KM3595/B4027900M00/17M-30-00330/

17M-30-01330/17M-30-01331

Komatsu D375-2~3 S/F 152 195-30-01010/195-30-01051
Komatsu D375-2~3 D/F 158 195-30-01020/195-30-01061
Komatsu D375-5 S/F 145 195-30-01411
Komatsu D375-5 D/F 162 195-30-01421
CAT D8N/R D/F 101 CR4529/9W8706/7G9193
CAT D8N/R S/F 94 CR4528/9W8705/7G9188/1969947/LH1081
CAT D9N/R D/F 119.4 7T1253/1043496/1969954/CR4673
CAT D9N/R S/F 113.6 7T1258/1043495/1969955/CR4672
FIAT FL4 S 20.5
FIAT FL4 D 22
Komatsu D85 SF 69.7 154-30-01020/KM3917/154-30-01051
Komatsu D85 DF 77.6 154-30-01030/KM3918/154-30-01061
  MF200S 21.5 U8989
  MF200D 23 U8990
  HITACHI EX1200-5 205.5 TC02465
HITACHI EX1200-6 216 446752/4666752/
CAT D9L SF 126.5

6Y2950/CR4234/6Y2948/CR3755/CR4103B/

7T1831/9G8641/VCR4234V/A01099LBM00/A01099LBY00

CAT D9L DF 131

6Y2951/CR3756/CR4104B/6Y2949/9G8642/

VCR3756V/B01099LBM00/B01099LBY00

CAT D10N SF 135 6Y8192/6Y0889/1253268/1955855/CR5041
CAT D10N DF 143 6Y8191/6Y0890/1253270/1955856/7T0687
CAT D11 DF 201 CR5615B /6T9376/184-6306
CAT D11 SF 192 CR5614B/ 6T9371/184-6305
Komatsu D475-2 SF 210 198-30-00421
Komatsu D475-2 DF 229 198-30-00432
Komatsu D475-5 SF 220.3
  D475-5 DF 240.9
CAT D7F/D7G/D7R DF 77.9

9S-0317/124-8253//6T9867/3P1521/3P6063/

6P9885/8S2932/8S2933/CR2615

CAT D7F/D7G/D7R SF 69.3

9S-0316/124-8250//6T9871/3P1520/3P6062/

4S9050/4S9051/CR2617

Komatsu D65-12 SF 53.3 KM2101/14X-30-00030
Komatsu D65-12 DF 60.8 KM2102/14X-30-00040

  Komatsu D20 14
  CAT

CAT219/225B/

225D

38

9W6721/8E4573/CJ5110/CR5110/9W6789/

VCR5110V/A0125000M00

  CAT D8N DF ITM 100.1 CR4529/9W8706/7G9193
  CAT D8N SF ITM 94 CR4528/9W8705/7G9188/1969947/LH1081
  CAT D9N DF ITM 119.4 7T1253/1043496/1969954
  CAT D9N SF ITM 113.6 7T1258/1043495/1969955
  CAT D6D DF 58.2 7G-0423/9G-8034/118-1618/CR/120-5766/CR6089
  CAT D6D SF 53.3 7G-0421/9G-8029/118-1617/120-5746/CR6088
  CAT D5/D6B/D6M SF 44.5 9S-9539/121-0824/CR6152
  CAT D5/D6B/D6M DF 49.1 9S-9538/121-0827/CR6153
  CAT D4H/D5N//D5M SF 35.5 124-8237/CR6150/CR4305/125-4169/7G7836/7G4829
  CAT D4H/D5N//D5M DF 38.6 124-8240/CR6151/CR4306/125-4170/7G4837/7G4829
  Komatsu D355A-3 DF 166

195-30-00346/195-30-00124/195-30-00125/195-30-00126/

195-30-00127/195-130-00128/195-30-00341/195-30-00342/KM927

  Komatsu D355A-3 SF 153

195-30-00336/195-30-00114/195-30-00115/195-30-00116/

195-30-00117/195-30-00118/195-30-00331/195-30-00332/KM926

  Komatsu D155AX DF 110 17A-30-00080/KM2266
  Komatsu D155AX SF 101.5 17A-30-00070/KM2265
  CAT D7E DF 77.9

1P9102/6B6123/7B9459/8B9160/1F6213/2F3086/7F2470/

8H0781/8H0784/7M5116/8M5114/1P9402/8P0946/3S0744/

3S0746/4S8981/9S7286/9S3395/CR1652/2

  CAT D7E SF 69.3 1P9100/6B3137/7B9458/8B5159/1F6212/2F3085/7F2469/8H078


Production Flow Processing and inspection



1. Pre-process preparation stage


1. Material selection: The material of the roller has the characteristics of wear resistance and high strength. The more common materials are 45# steel, 55# steel, alloy steel, etc.
2. Design and drawing: Carry out reasonable structural design and drawing according to the working characteristics and usage occasions of the roller.
3. Process regulations: Develop detailed process regulations according to the requirements of roller processing.


2. Roller rough machining stage


1. Turning: Use a lathe to perform rough machining of the roller, including turning the outer diameter, end face, etc. of the roller.
2. Milling: Mill the tooth shape of the roller and perform overall trimming to ensure the accuracy of the roller.
3. Grinding: Grinding the rolling body, shaft hole, tooth portion and end face of the roller.


3. Roller finishing stage


1. Drilling: Drill the core hole or fixed hole on the roller.
2. Brushing: Use a broaching machine to remove burrs and polish the surface of the shaft hole of the roller.
3. Polishing: Polish the surface finish of the roller to improve the surface quality of the roller.


4. Dimensional inspection and packaging stage


1. Dimensional inspection: Dimensional inspection of the roller, including measuring the diameter, length, tooth pitch and number of teeth of the roller to ensure its accuracy.
2. Packaging: After completing the roller size inspection, the rollers are packaged to ensure their safe transportation.


The above is the general process of roller processing. Different roller processing processes will be different.



Company Strength





Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 5


   Guangzhou Haofeng Scm Co., Ltd. is located in Nansha District, Guangzhou.Our company is a professional supplier of machinery parts, suitable for Caterpillar, Hitachi, Hyundai, Kobelco, Komatsu and other brands.We are committed to providing used excavator, excavator parts and Customized mechanical accessory. We have a large independent factory,100 employees, 15 sets of equipment and 4 production lines. We are both a supplier and manufacturer of mechanical engineering accessories.Our goods are delivered directly from the factory to customers with low price and good quality.



Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 6
Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 7


Customer Photos



Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 8



Packaging And Shipping



We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

1.By Bulk Shipment,the machine is placed on the deck.
2.By Ro Ro Shipment,the machine is placed in the cabin.
3.By Flat Rack Container Shipment.
Excavator parts under chassis track roller top roller idler sprocket Track bottom roller 9


FAQ



Q: Why should you buy from us not from other suppliers?



A:We have two companies and one factory, the price and quality are very advantageous. Our team has 20 years of experience in the machinery industry.



Q: How long is your delivery time?



A: Generally it is 10 days if the goods are in stock. or it is 20-30 days if not in stock. If it is customized,it will be confirmed accord ing to order.



Q: What about Quality Control?



A:We have excellent tester, check every piece to ensure the quality is good, and check the quantity is correct before the shipment.



Q: What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery,Terms Trade have CIF ,CFR,FOB,etc.
