Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh

Certification
China Guangzhou Haofeng Supply Chain Management Co., Ltd certification
China Guangzhou Haofeng Supply Chain Management Co., Ltd certification
I'm Online Chat Now

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh
Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh
Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh

Large Image :  Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh

Product Details:
Place of Origin: Guangdong, China
Brand Name: HF
Certification: ISO9001
Model Number: ANY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $20.00 - $150.00/pieces
Packaging Details: Pallet, wooden case, plastic film packaging or custom packaging
Delivery Time: within 3 days after receiving payment
Payment Terms: L/C, T/T
Supply Ability: 6000 Piece/Pieces Month

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh

Description
Condition: New Applicable Industries: Machinery Repair Shops, Energy & Mining, Construction Works , Other
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty: 6 Months
Color: Yellow/Black/Other Process: Forging /casting
Material: 35MnB Surface Hardness: HRC52-58
Hardness Depth: 8-12mm Type: Excavator Undercarriage Parts
Port: NANSHA,GUANGZHOU,YIWU,SHISHI...

Products Features



Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 0

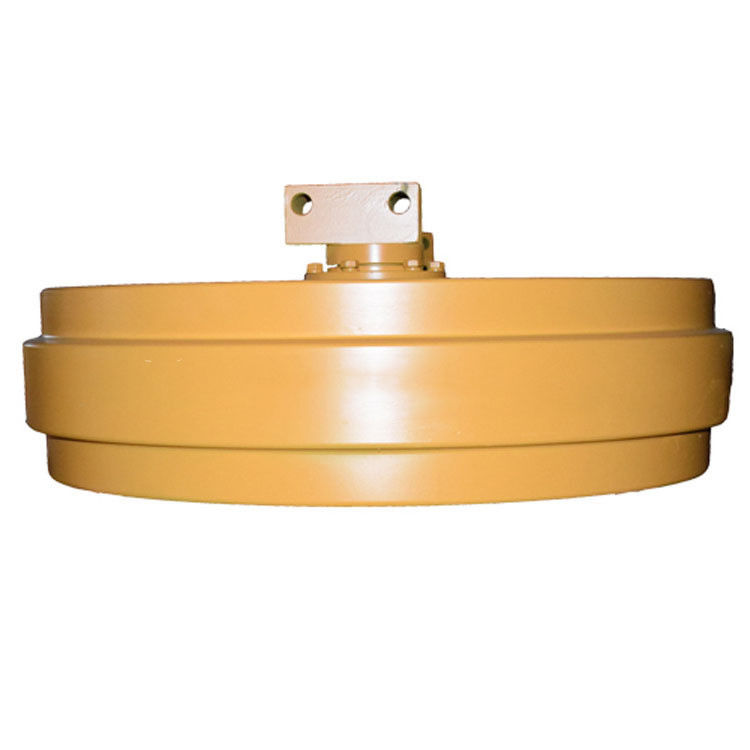

The idler, which is also called idler group, idler assy, front idler or idler wheel, is one part of undercarriage parts for crawler heavy equipments such as excavator, bulldozer, crane, drilling machine etc.



The idler is made of idler shell, shaft, brackets, Bi-metallic Bearings and seal group. It is made by casting or forging, machining, heat treatment, assembly, painting etc.



The quality and working life depends on the quality of raw steels, the hardness of rail surface, the depth of hardness layer, the quality of seal group etc.





Material
35MnB
Finish Smooth
Colors Yellow/Black/Other
Technique Forging / casting
Surface Hardness HRC52-58,deepth:8mm-12mm
Warranty time 6 months
Certification ISO9001
Delivery Time Within 3 days after contract established

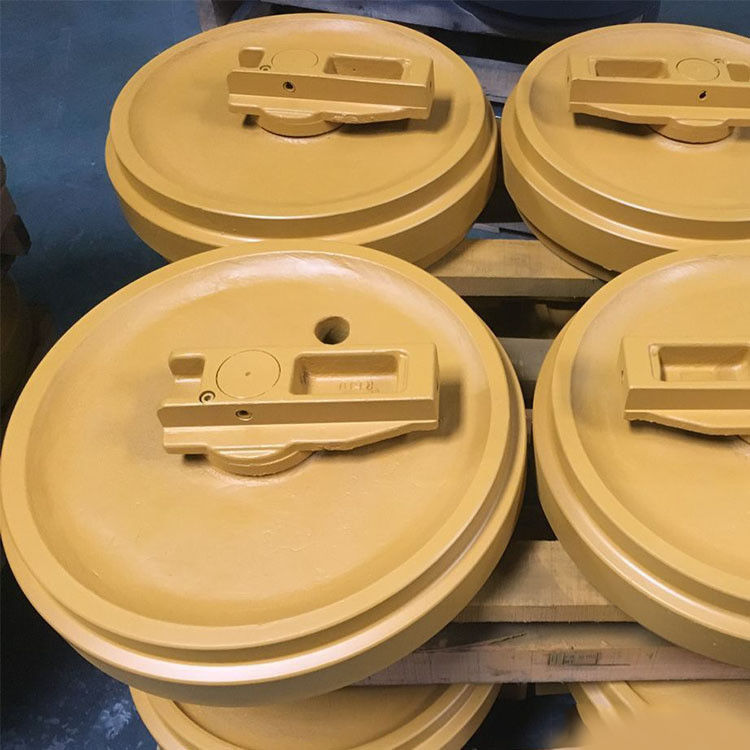

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 1

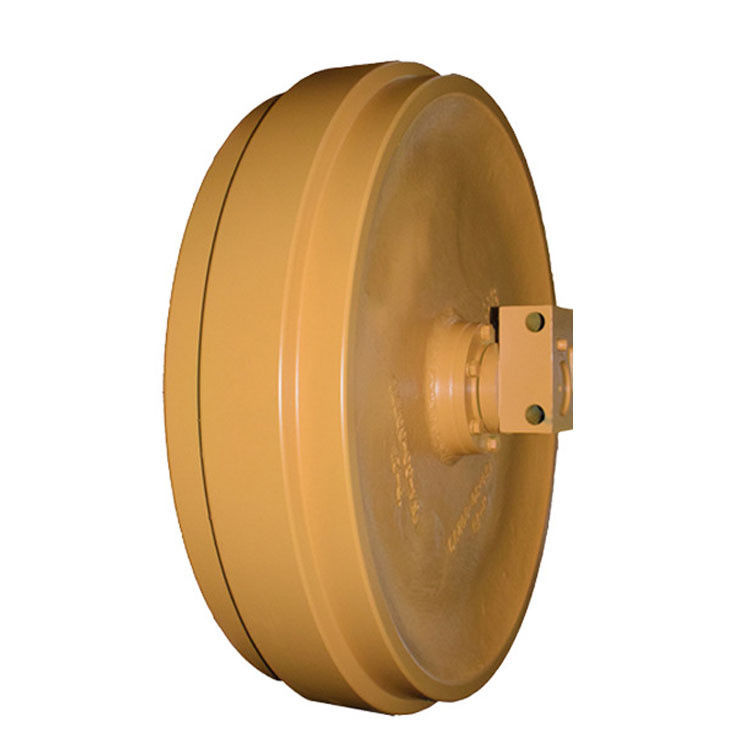

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 2

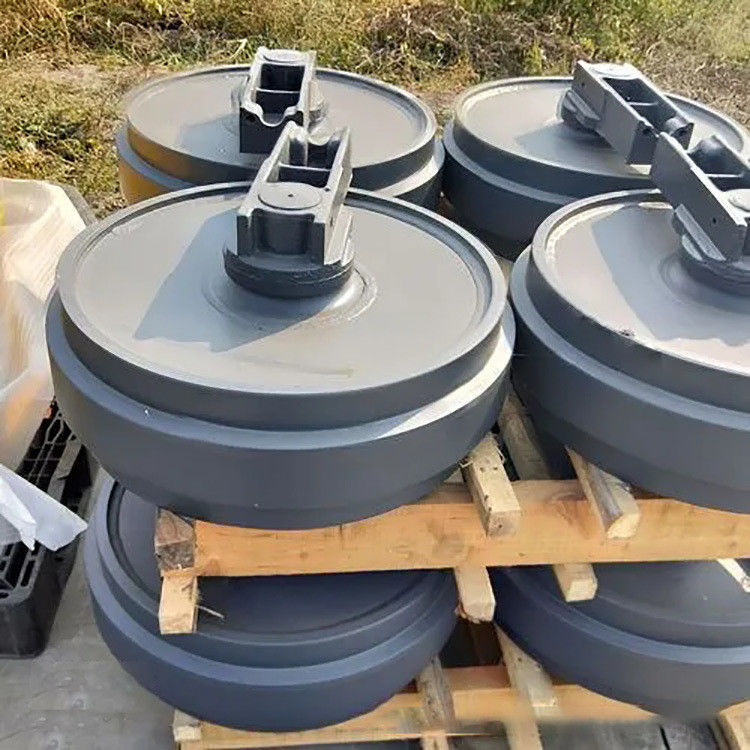

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 3


Other machinery and models are available



IDLER
PC200 20Y-30-00030/KM-1642
CAT320 113-2907/102-8151/CR5732
E325 7Y0360
CAT330/E336 1028152
CAT345 115-6366/CR-6597
CAT385 EC700B/EC650 CR6380/102-8136/135-8904/194-1157/248-7257/7Y-0856
ZX200/240 9176864/9242964
SK200-3 24100N5948F2
EC290C 14589914
EC290B 1181-00721/14510972
EX200-5 9145269/ID-1816
PC300/360 207-30-00160/KM-2018
PC400/PC450 208-30-00201
PC650-8 KM3060/21M-30-00301/21M-30-0030A
R290 81EH-10050/81E8-2004/57407314/PV9544B0M00
R305 81N8-13010 / V81N8-13010V
SH400 KTA1268Z-C
VI030-1A 172458-37061
PC35R-8 VIO40 VIO30 PC03 PC05 PC15MR PC10MR PC20MR PC30MR PC35R PC650-8 SK20SR SK40SR SK50UR
EX25-1 EX60-5 EX300-5 ZX330 ZAX360-5G EX400-1/ZX450 Short York ZAX450/ZAX470 Long York ZX870


Production Flow Processing and inspection



1. Material pretreatment: Preprocess the steel alloy or manganese steel materials required for the excavator wheel hub to remove impurities and impure substances to ensure the purity and plasticity of the material.


2. Heat treatment: The pretreated material is subjected to multiple steps such as high-temperature heating, insulation, and cooling. The structure and performance of the material are improved through the heat treatment process, and the strength and hardness of the wheel hub are increased.


3. Forging processing: The heat-treated material is forged into shape. After the material is heated, hammering, extrusion, stretching and other operations are performed, and the blank is finally forged into a precise wheel hub shape.


4. Machining: Process the forged wheel hub blank, including fine machining processes such as surface processing, holes, gears and splines.


5. Heat treatment again: The processed wheel hub is subjected to high-temperature heat treatment to make the wheel hub surface have high hardness and high strength, ensuring the reliability and durability of the wheel hub in high load and high-speed environments.


6. Spray painting: The manufactured wheel hubs are treated with protective coatings such as powder spraying to ensure the anti-corrosion and aesthetics of the wheel hub surface.



Company Strength

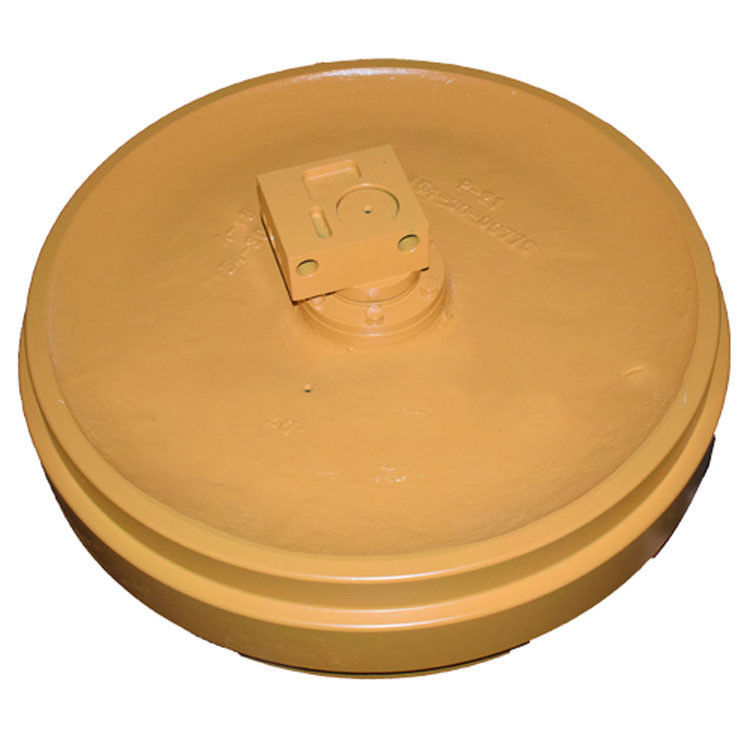

Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 4


   Guangzhou Haofeng Scm Co., Ltd. is located in Nansha District, Guangzhou.Our company is a professional supplier of machinery parts, suitable for Caterpillar, Hitachi, Hyundai, Kobelco, Komatsu and other brands.We are committed to providing used excavator, excavator parts and Customized mechanical accessory. We have a large independent factory,100 employees, 15 sets of equipment and 4 production lines. We are both a supplier and manufacturer of mechanical engineering accessories.Our goods are delivered directly from the factory to customers with low price and good quality.



Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 5
Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 6


Customer Photos



Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 7



Packaging And Shipping



We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

1.By Bulk Shipment,the machine is placed on the deck.
2.By Ro Ro Shipment,the machine is placed in the cabin.
3.By Flat Rack Container Shipment.
Pc20 Pc30 Pc40 Pc50 Pc55 Pc60-6 Pc100-5 Pc120 Pc200-5 for Mini Excavator Undercarriage Spare Parts Front Rubber Idler Wh 8


FAQ



Q: Why should you buy from us not from other suppliers?



A:We have two companies and one factory, the price and quality are very advantageous. Our team has 20 years of experience in the machinery industry.



Q: How long is your delivery time?



A: Generally it is 10 days if the goods are in stock. or it is 20-30 days if not in stock. If it is customized,it will be confirmed accord ing to order.



Q: What about Quality Control?



A:We have excellent tester, check every piece to ensure the quality is good, and check the quantity is correct before the shipment.



Q: What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery,Terms Trade have CIF ,CFR,FOB,etc.
